產品概述
CDL、CDLF立式多級不銹鋼離心泵是采用不銹鋼材質制造而成，其突出優點是水力模型設計先進，高效率，高節能。水泵內部葉輪、泵殼及其主要配件采用不銹鋼沖壓 成形，流道特別光滑，軸瓦、軸套用硬質合金，具有超強的使用壽命，避免產生二次污染。軸封采用耐磨機械密封，無泄漏。電機采用標準電機，優質軸承，絕緣等級F級。泵運轉平穩，低噪音，整機質量可靠，外形美觀、體積小、重量輕、運輸安裝方便，是理想的綠色、環保、節能的水泵。
典型應用
1、市政供水及增壓
2、工業循環系統及加工系統
3、鍋爐給水及冷凝液系統
4、環保水處理，滲透分析系統
5、農業灌溉及脫水
6、工業廠房清洗及各種清洗工作
7、(其他)許多專門用途
技術參數
流量：0.4m3/h～240m3/h
揚程：4m～305m
功率：0.37kW～110kW
液體溫度：-15℃～+120℃
頻率：50Hz/60Hz
應用范圍
普通型適用于液體傳輸，冷熱清潔水，軟化水的循環和增壓。
不銹鋼型亦適用于微堿水、脫礦物質水、蒸餾水、游泳池水及其含氯化物液體，但液體允許溫度需要降低。
工作條件
冷熱清潔的，非易燃易爆并不含有固體顆?；蚶w維的液體；液體溫度：常溫型-15℃至+70℃，熱水型+70℃至+120℃：環境溫度：不超過+40℃；入口壓力不低于：根據NPSH曲線+安全揚程量0.5米水頭。
結構特征
| 安裝形式：立式水平安裝 |
泵體結構：立式多級 |
|
葉輪形式：沖壓式閉式單吸 |
連接形式：法蘭、螺紋、卡套 |
|
密封形式：機械密封 |
進出口徑：φ25mm-φ125mm |
主要材質
| 軸承材質：石墨軸承 |
軸套材質：硬質合金 |
|
軸 瓦：硬質合金 |
泵軸材質：不銹鋼 |
|
中 段：不銹鋼 |
葉輪擋套：不銹鋼 |
|
泵體材質：不銹鋼 |
葉輪材質：不銹鋼 |
|
氣嘴材質：銅 |
回水管件：不銹鋼 |
|
外 筒：不銹鋼 |
機械密封：合金對SiC、氟橡膠 |

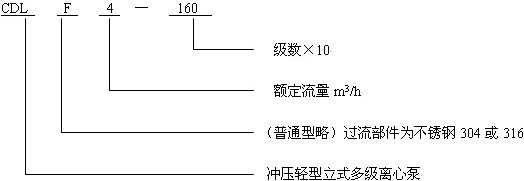

型號意義：
CDL、CDLF不銹鋼多級離心泵性能參數表：
|
型號 |
揚程(m) |
流量(m3/h) |
電機功率(KW) |
轉速(r/min) |
|
CDL1-2 |
11.5 |
1 |
0.37 |
2900 |
|
CDL1-3 |
17 |
1 |
0.37 |
2900 |
|
CDL1-4 |
22.5 |
1 |
0.37 |
2900 |
|
CDL1-5 |
28 |
1 |
0.37 |
2900 |
|
CDL1-6 |
33.5 |
1 |
0.37 |
2900 |
|
CDL1-7 |
39 |
1 |
0.37 |
2900 |
|
CDL1-8 |
45 |
1 |
0.55 |
2900 |
|
CDL1-9 |
51 |
1 |
0.55 |
2900 |
|
CDL1-10 |
57 |
1 |
0.55 |
2900 |
|
CDL1-17 |
95 |
1 |
1.1 |
2900 |
|
CDL1-19 |
106 |
1 |
1.1 |
2900 |
|
CDL1-21 |
117 |
1 |
1.1 |
2900 |
|
CDL1-23 |
128 |
1 |
1.1 |
2900 |
|
CDL1-25 |
139 |
1 |
1.5 |
2900 |
|
CDL1-27 |
150 |
1 |
1.5 |
2900 |
|
CDL1-30 |
166 |
1 |
1.5 |
2900 |
|
CDL1-33 |
183 |
1 |
2.2 |
2900 |
|
CDL1-36 |
200 |
1 |
2.2 |
2900 |
|
CDL2-2 |
15 |
2 |
0.37 |
2900 |
|
CDL2-3 |
22 |
2 |
0.37 |
2900 |
|
CDL2-4 |
30 |
2 |
0.55 |
2900 |
|
CDL2-5 |
37 |
2 |
0.55 |
2900 |
|
CDL2-6 |
45 |
2 |
0.75 |
2900 |
|
CDL2-7 |
52 |
2 |
0.75 |
2900 |
|
CDL2-9 |
67 |
2 |
1.1 |
2900 |
|
CDL2-11 |
82 |
2 |
1.1 |
2900 |
|
CDL2-13 |
98 |
2 |
1.5 |
2900 |
|
CDL2-15 |
112 |
2 |
1.5 |
2900 |
|
CDL2-18 |
136 |
2 |
2.2 |
2900 |
|
CDL2-22 |
165 |
2 |
2.2 |
2900 |
|
CDL2-26 |
198 |
2 |
3.0 |
2900 |
|
CDL3-2 |
9 |
3 |
0.37 |
2900 |
|
CDL3-3 |
14 |
3 |
0.37 |
2900 |
|
CDL3-4 |
19 |
3 |
0.37 |
2900 |
|
CDL3-5 |
23 |
3 |
0.37 |
2900 |
|
CDL3-6 |
28 |
3 |
0.55 |
2900 |
|
CDL3-7 |
32 |
3 |
0.55 |
2900 |
|
CDL3-8 |
37 |
3 |
0.75 |
2900 |
|
CDL3-9 |
42 |
3 |
0.75 |
2900 |
|
CDL3-10 |
47 |
3 |
0.75 |
2900 |
|
CDL3-11 |
51 |
3 |
1.1 |
2900 |
|
CDL3-12 |
55 |
3 |
1.1 |
2900 |
|
CDL3-13 |
60 |
3 |
1.1 |
2900 |
|
CDL3-15 |
69 |
3 |
1.1 |
2900 |
|
CDL3-17 |
79 |
3 |
1.5 |
2900 |
|
CDL3-19 |
88 |
3 |
1.5 |
2900 |
|
CDL3-21 |
98 |
3 |
2.2 |
2900 |
|
CDL3-23 |
107 |
3 |
2.2 |
2900 |
|
CDL3-25 |
116 |
3 |
2.2 |
2900 |
|
CDL3-27 |
124 |
3 |
2.2 |
2900 |
|
CDL3-29 |
133 |
3 |
2.2 |
2900 |
|
CDL3-31 |
142 |
3 |
3 |
2900 |
|
CDL3-33 |
151 |
3 |
3 |
2900 |
|
CDL3-36 |
168 |
3 |
3 |
2900 |
|
CDL4-2 |
15 |
4 |
0.37 |
2900 |
|
CDL4-3 |
24 |
4 |
0.55 |
2900 |
|
CDL4-4 |
32 |
4 |
0.75 |
2900 |
|
CDL4-5 |
40 |
4 |
1.1 |
2900 |
|
CDL4-6 |
48 |
4 |
1.1 |
2900 |
|
CDL4-7 |
56 |
4 |
1.5 |
2900 |
|
CDL4-8 |
64 |
4 |
1.5 |
2900 |
|
CDL4-10 |
81 |
4 |
2.2 |
2900 |
|
CDL4-12 |
95 |
4 |
2.2 |
2900 |
|
CDL4-14 |
112 |
4 |
3 |
2900 |
|
CDL4-16 |
129 |
4 |
3 |
2900 |
|
CDL4-19 |
153 |
4 |
4 |
2900 |
|
CDL4-22 |
178 |
4 |
4 |
2900 |
|
CDL8-2/1 |
9 |
8 |
0.75 |
2900 |
|
CDL8-2 |
18 |
8 |
0.75 |
2900 |
|
CDL8-3 |
27 |
8 |
1.1 |
2900 |
|
CDL8-4 |
36 |
8 |
1.5 |
2900 |
|
CDL8-5 |
45 |
8 |
2.2 |
2900 |
|
CDL8-6 |
54 |
8 |
2.2 |
2900 |
|
CDL8-8 |
73 |
8 |
3.0 |
2900 |
|
CDL8-10 |
92 |
8 |
4.0 |
2900 |
|
CDL8-12 |
111 |
8 |
4.0 |
2900 |
|
CDL8-14 |
130 |
8 |
5.5 |
2900 |
|
CDL8-16 |
148 |
8 |
5.5 |
2900 |
|
CDL8-18 |
167 |
8 |
7.5 |
2900 |
|
CDL8-20 |
186 |
8 |
7.5 |
2900 |
|
CDL12-2 |
20 |
12 |
1.5 |
2900 |
|
CDL12-3 |
30 |
12 |
2.2 |
2900 |
|
CDL12-4 |
40 |
12 |
3 |
2900 |
|
CDL12-5 |
50 |
12 |
3 |
2900 |
|
CDL12-6 |
60 |
12 |
4 |
2900 |
|
CDL12-7 |
70 |
12 |
5.5 |
2900 |
|
CDL12-8 |
80 |
12 |
5.5 |
2900 |
|
CDL12-9 |
91 |
12 |
5.5 |
2900 |
|
CDL12-10 |
101 |
12 |
7.5 |
2900 |
|
CDL12-12 |
121 |
12 |
7.5 |
2900 |
|
CDL12-14 |
141 |
12 |
11 |
2900 |
|
CDL12-16 |
162 |
12 |
11 |
2900 |
|
CDL12-18 |
183 |
12 |
11 |
2900 |
|
CDL16-2 |
22 |
16 |
2.2 |
2900 |
|
CDL16-3 |
34 |
16 |
3.0 |
2900 |
|
CDL16-4 |
46 |
16 |
4.0 |
2900 |
|
CDL16-5 |
58 |
16 |
5.5 |
2900 |
|
CDL16-6 |
70 |
16 |
5.5 |
2900 |
|
CDL16-7 |
82 |
16 |
7.5 |
2900 |
|
CDL16-8 |
94 |
16 |
7.5 |
2900 |
|
CDL16-10 |
118 |
16 |
11 |
2900 |
|
CDL16-12 |
141 |
16 |
11 |
2900 |
|
CDL16-14 |
166 |
16 |
15 |
2900 |
|
CDL16-16 |
189 |
16 |
15 |
2900 |
|
CDL20-1 |
10 |
20 |
1.1 |
2900 |
|
CDL20-2 |
23 |
20 |
2.2 |
2900 |
|
CDL20-3 |
35 |
20 |
4.0 |
2900 |
|
CDL20-4 |
47 |
20 |
5.5 |
2900 |
|
CDL20-5 |
58 |
20 |
5.5 |
2900 |
|
CDL20-6 |
70 |
20 |
7.5 |
2900 |
|
CDL20-7 |
82 |
20 |
7.5 |
2900 |
|
CDL20-8 |
94 |
20 |
11 |
2900 |
|
CDL20-10 |
118 |
20 |
11 |
2900 |
|
CDL20-12 |
142 |
20 |
15 |
2900 |
|
CDL20-14 |
166 |
20 |
15 |
2900 |
|
CDL20-17 |
202 |
20 |
18.5 |
2900 |
|
CDL32-10-1 |
9 |
32 |
1.5 |
2900 |
|
CDL32-10 |
13 |
32 |
2.2 |
2900 |
|
CDL32-20-2 |
20 |
32 |
3.0 |
2900 |
|
CDL32-20 |
27 |
32 |
4.0 |
2900 |
|
CDL32-30-2 |
33 |
32 |
5.5 |
2900 |
|
CDL32-30 |
40 |
32 |
5.5 |
2900 |
|
CDL32-40-2 |
46 |
32 |
7.5 |
2900 |
|
CDL32-40 |
53 |
32 |
7.5 |
2900 |
|
CDL32-50-2 |
60 |
32 |
11 |
2900 |
|
CDL32-50 |
67 |
32 |
11 |
2900 |
|
CDL32-60-2 |
74 |
32 |
11 |
2900 |
|
CDL32-60 |
81 |
32 |
11 |
2900 |
|
CDL32-70-2 |
88 |
32 |
15 |
2900 |
|
CDL32-70 |
95 |
32 |
15 |
2900 |
|
CDL32-80-2 |
102 |
32 |
15 |
2900 |
|
CDL32-80 |
109 |
32 |
15 |
2900 |
|
CDL32-90-2 |
117 |
32 |
18.5 |
2900 |
|
CDL32-90 |
124 |
32 |
18.5 |
2900 |
|
CDL32-100-2 |
131 |
32 |
18.5 |
2900 |
|
CDL32-100 |
138 |
32 |
18.5 |
2900 |
|
CDL32-110-2 |
146 |
32 |
22 |
2900 |
|
CDL32-110 |
153 |
32 |
22 |
2900 |
|
CDL32-120-2 |
160 |
32 |
22 |
2900 |
|
CDL32-120 |
167 |
32 |
22 |
2900 |
|
CDL32-130-2 |
174 |
32 |
30 |
2900 |
|
CDL32-130 |
181 |
32 |
30 |
2900 |
|
CDL32-140-2 |
189 |
32 |
30 |
2900 |
|
CDL32-140 |
196 |
32 |
30 |
2900 |
|
CDL42-10-1 |
16 |
42 |
3.0 |
2900 |
|
CDL42-10 |
20 |
42 |
4.0 |
2900 |
|
CDL42-20-2 |
32 |
42 |
5.5 |
2900 |
|
CDL42-20 |
41 |
42 |
7.5 |
2900 |
|
CDL42-30-2 |
52 |
42 |
11 |
2900 |
|
CDL42-30 |
61 |
42 |
11 |
2900 |
|
CDL42-40-2 |
73 |
42 |
15 |
2900 |
|
CDL42-40 |
81 |
42 |
15 |
2900 |
|
CDL42-50-2 |
93 |
42 |
18.5 |
2900 |
|
CDL42-50 |
101 |
42 |
18.5 |
2900 |
|
CDL42-60-2 |
113 |
42 |
22 |
2900 |
|
CDL42-60 |
122 |
42 |
22 |
2900 |
|
CDL42-70-2 |
134 |
42 |
30 |
2900 |
|
CDL42-70 |
142 |
42 |
30 |
2900 |
|
CDL42-80-2 |
154 |
42 |
30 |
2900 |
|
CDL42-80 |
162 |
42 |
30 |
2900 |
|
CDL42-90-2 |
174 |
42 |
30 |
2900 |
|
CDL42-90 |
183 |
42 |
37 |
2900 |
|
CDL42-100-2 |
194 |
42 |
37 |
2900 |
|
CDL42-100 |
203 |
42 |
37 |
2900 |
|
CDL42-110-2 |
217 |
42 |
45 |
2900 |
|
CDL42-110 |
225 |
42 |
45 |
2900 |
|
CDL42-120-2 |
238 |
42 |
45 |
2900 |
|
CDL42-120 |
247 |
42 |
45 |
2900 |
|
CDL42-130-2 |
259 |
42 |
45 |
2900 |
|
CDL65-10-1 |
13 |
65 |
4.0 |
2900 |
|
CDL65-10 |
20 |
65 |
5.5 |
2900 |
|
CDL65-20-2 |
26 |
65 |
7.5 |
2900 |
|
CDL65-20-1 |
33 |
65 |
11 |
2900 |
|
CDL65-20 |
40 |
65 |
11 |
2900 |
|
CDL65-30-2 |
46 |
65 |
15 |
2900 |
|
CDL65-30-1 |
53 |
65 |
15 |
2900 |
|
CDL65-30 |
60 |
65 |
18.5 |
2900 |
|
CDL65-40-2 |
66 |
65 |
18.5 |
2900 |
|
CDL65-40-1 |
73 |
65 |
22 |
2900 |
|
CDL65-40 |
80 |
65 |
22 |
2900 |
|
CDL65-50-2 |
88 |
65 |
30 |
2900 |
|
CDL65-50-1 |
95 |
65 |
30 |
2900 |
|
CDL65-50 |
102 |
65 |
30 |
2900 |
|
CDL65-60-2 |
110 |
65 |
30 |
2900 |
|
CDL65-60-1 |
117 |
65 |
37 |
2900 |
|
CDL65-60 |
124 |
65 |
37 |
2900 |
|
CDL65-70-2 |
132 |
65 |
37 |
2900 |
|
CDL65-70-1 |
139 |
65 |
37 |
2900 |
|
CDL65-70 |
146 |
65 |
45 |
2900 |
|
CDL65-80-2 |
154 |
65 |
45 |
2900 |
|
CDL65-80-1 |
161 |
65 |
45 |
2900 |
|
CDL85-10-1 |
14 |
85 |
5.5 |
2900 |
|
CDL85-10 |
20 |
85 |
7.5 |
2900 |
|
CDL85-20-2 |
30 |
85 |
11 |
2900 |
|
CDL85-20 |
41 |
85 |
15 |
2900 |
|
CDL85-30-2 |
52 |
85 |
18.5 |
2900 |
|
CDL85-30 |
64 |
85 |
22 |
2900 |
|
CDL85-40-2 |
75 |
85 |
30 |
2900 |
|
CDL85-40 |
86 |
85 |
30 |
2900 |
|
CDL85-50-2 |
98 |
85 |
37 |
2900 |
|
CDL85-50 |
110 |
85 |
37 |
2900 |
|
CDL85-60-2 |
122 |
85 |
45 |
2900 |
|
CDL85-60 |
134 |
85 |
45 |
2900 |
|
CDL120-10 |
18.5 |
120 |
11 |
2950 |
|
CDL120-20-2 |
28.5 |
120 |
15 |
2950 |
|
CDL120-20-1 |
34.5 |
120 |
18.5 |
2950 |
|
CDL120-20 |
40 |
120 |
22 |
2950 |
|
CDL120-30-2 |
49 |
120 |
30 |
2950 |
|
CDL120-30-1 |
55.5 |
120 |
30 |
2950 |
|
CDL120-30 |
61 |
120 |
30 |
2950 |
|
CDL120-40-2 |
69 |
120 |
37 |
2950 |
|
CDL120-40-1 |
76 |
120 |
37 |
2950 |
|
CDL120-40 |
81 |
120 |
45 |
2950 |
|
CDL120-50-2 |
90 |
120 |
45 |
2950 |
|
CDL120-50-1 |
97 |
120 |
45 |
2950 |
|
CDL120-50 |
101.5 |
120 |
55 |
2950 |
|
CDL120-60-2 |
110 |
120 |
55 |
2950 |
|
CDL120-60-1 |
118 |
120 |
55 |
2950 |
|
CDL120-60 |
123 |
120 |
75 |
2950 |
|
CDL120-70-2 |
130 |
120 |
75 |
2950 |
|
CDL120-70-1 |
137.5 |
120 |
75 |
2950 |
|
CDL120-70 |
145 |
120 |
75 |
2950 |
|
CDL150-10-1 |
12.5 |
150 |
11 |
2950 |
|
CDL150-10 |
18.5 |
150 |
15 |
2950 |
|
CDL150-20-2 |
27.5 |
150 |
18.5 |
2950 |
|
CDL150-20-1 |
35 |
150 |
22 |
2950 |
|
CDL150-20 |
40 |
150 |
30 |
2950 |
|
CDL150-30-2 |
49 |
150 |
30 |
2950 |
|
CDL150-30-1 |
56 |
150 |
37 |
2950 |
|
CDL150-30 |
63 |
150 |
37 |
2950 |
|
CDL150-40-2 |
70.5 |
150 |
45 |
2950 |
|
CDL150-40-1 |
77 |
150 |
45 |
2950 |
|
CDL150-40 |
84 |
150 |
50 |
2950 |
|
CDL150-50-2 |
92 |
150 |
55 |
2950 |
|
CDL150-50-1 |
99 |
150 |
75 |
2950 |
|
CDL150-50 |
106.5 |
150 |
75 |
2950 |
|
CDL150-60-2 |
112 |
150 |
75 |
2950 |
|
CDL150-60-1 |
120.5 |
150 |
75 |
2950 |
|
CDL150-60 |
130 |
150 |
75 |
2950 |
